Tiếng ViệtPlastic injection molding has become an indispensable manufacturing method across many modern industries. From the automotive and electronics sectors to healthcare and household goods, the injection molding process contributes to the creation of millions of products that support daily life. However, not all manufacturers fully understand the essence and operational principles of this technology.
Thanks to its ability to produce high-quality products with outstanding efficiency, plastic injection molding is considered one of the most widely used manufacturing techniques today. To achieve optimal results, the entire process must be meticulously monitored and adjusted. This article will provide a detailed analysis of how injection molding technology works and how NBT Plastic manages the process to produce products that meet the highest quality standards.
I. Understanding Custom Plastic Injection Molding
Custom plastic injection molding is a production method in which manufacturers use injection molding technology to create plastic products tailored to customer specifications. Injection molding is a complex technological process that uses specialized hydraulic or electric machinery to melt, inject, and shape plastic materials based on pre-installed molds.
This method is especially favored in the production of plastic items—particularly cosmetic bottles and containers—due to its many advantages:
-
High Versatility: Manufacturers can choose mold designs and suitable thermoplastic polymers for each part. This allows the injection process to create a wide range of complex, intricate components.
-
Outstanding Productivity: Once the process is set up and tested, injection molding machines can produce thousands of units per hour.
-
High Uniformity: With tight control of technical parameters, the process can yield thousands of parts quickly with consistent quality.
-
Cost Efficiency: Once the mold—typically the most expensive component—is completed, the unit cost becomes relatively low, especially for large-scale production.
-
Assured Quality: Whether the manufacturer requires durable parts, high strength, or fine detail, injection molding can deliver consistently reliable quality.
These cost-efficiency, productivity, and quality advantages are the main reasons why many industries choose injection molding for their products.
II. Key Stages in the Plastic Injection Molding Process
Throughout the injection molding process, numerous technical parameters must be closely monitored to ensure the overall quality of the plastic components. A basic understanding of the process and these variables helps manufacturers identify capable suppliers for high-quality and consistent parts.
Stage 1: Selecting the Right Plastic Material
Before the injection molding process begins, the most crucial step is selecting the appropriate thermoplastic polymer and designing the mold. These are the core factors that determine the final product’s form and properties. In practice, manufacturers must study the interaction between the plastic and mold, as some plastics may not be compatible with specific mold designs.
Testing with suitable thermoplastic materials is essential to ensure the final product has the desired characteristics. Each thermoplastic polymer has unique properties, heat resistance, and pressure tolerance based on its molecular structure. Plastics with structured molecules are known as semi-crystalline, while those with more flexible structures are called amorphous plastics.
Common thermoplastics used in injection molding include:
-
Acrylonitrile-Butadiene-Styrene (ABS) – Smooth finish, strong, and durable; ideal for parts requiring strength and stability.
-
Polycarbonate (PC) – Lightweight and highly impact-resistant high-performance plastic.
-
Polypropylene (PP) – Excellent fatigue and heat resistance; semi-rigid, translucent, and flexible.
-
Polyethylene Terephthalate (PET) – A low-melting, transparent plastic often used for bottle preforms.
The final material choice depends on the desired properties of the finished part and the mold design.
Stage 2: Mold Design and Manufacturing
A mold consists of two main components: the cavity (fixed side) and the core (moving side). The mold is made from special steel to withstand high pressure and heat. It may be designed to produce one or multiple parts simultaneously, depending on customer requirements.
Due to the complexity and high material costs, mold production is a time-consuming and expensive step. Before creating a final mold, prototypes and test tools are made using Computer-Aided Design (CAD) and 3D printing to simulate or physically test the mold with the selected thermoplastic.
Once the polymer and mold have been validated, the injection molding process can begin.
Stage 3: Melting the Plastic Material
Injection molding machines include a hopper, barrel with heaters, screw, and stationary plate separating the nozzle and mold.
Plastic pellets (virgin or recycled) are fed into the hopper and gradually pushed into the barrel by a rotating screw. As they move, friction and heater bands melt the plastic into a liquid state.
Maintaining the right temperature is essential to ensure proper flow and accurate molding.
Stage 4: Injecting Molten Plastic into the Mold
Once melted, the screw retracts, drawing in a measured amount of plastic and building pressure. Simultaneously, the two halves of the mold are clamped shut under high pressure (clamping force).
When pressure is balanced, the screw advances, and the molten plastic is injected into the mold cavity.
Stage 5: Holding and Cooling Time
After most of the plastic is injected, it is held under pressure for a set duration (“holding time”), ranging from milliseconds to several minutes depending on the polymer and part complexity. Precise holding ensures the plastic fills the mold properly.
Next, the screw retracts, releasing the pressure. The part cools and solidifies in the mold. This “cooling time” ensures dimensional accuracy before ejection.
Stage 6: Part Ejection and Finishing
Once cooled, ejector pins or plates push the part out of the mold onto a bin or conveyor belt. Secondary finishing—such as trimming excess plastic or surface coating—may be required, either manually or via automated systems.
After finishing, the parts are ready for packaging and distribution.
III. Optimizing the Injection Molding Process
Optimizing the injection molding process to align with sustainable development principles is crucial today. By minimizing waste, energy consumption, and environmental impact, manufacturers can contribute to a greener future.
Design for Manufacturability (DFM) to Improve Efficiency and Reduce Waste
DFM emphasizes simple product design, reducing part count and complex geometries that lead to increased errors and material waste. Optimizing part layout in the mold and using nesting techniques helps minimize scrap and excess material.
Balancing Cost and Sustainability
Cost-effectiveness and sustainability should be unified goals. From the project outset, prioritize sustainability alongside cost considerations. Though initial investments for sustainable molding may be higher, long-term operational costs are lower.

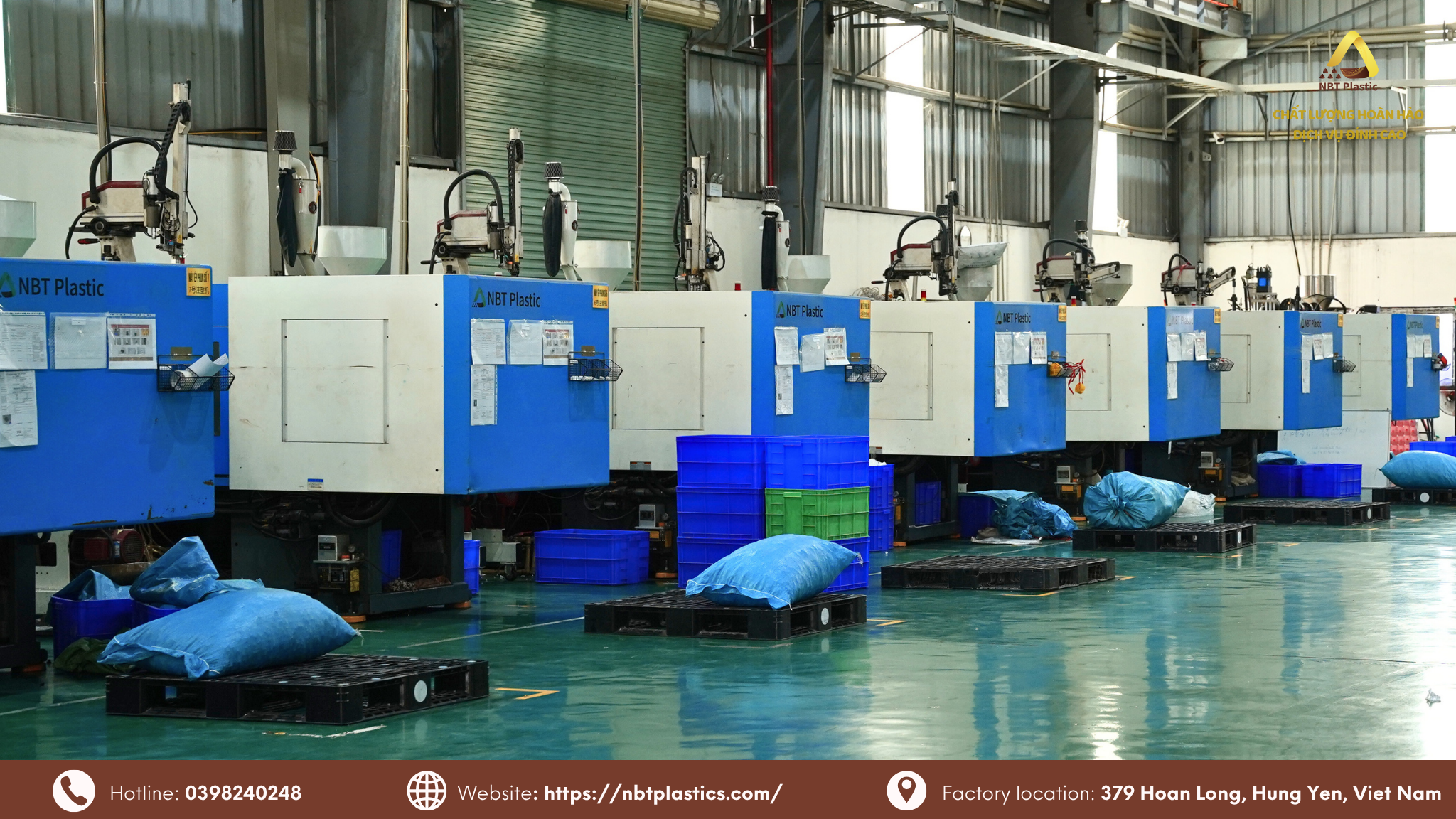

IV. A Trusted Plastic Injection Molding Manufacturer in Vietnam
NBT Plastic proudly leads in the manufacturing of lotion pumps, fine mist sprayers, window sprayers, and industrial plastic bottles in Vietnam. With a large-scale, modern factory located at 379 Hoan Long Commune, Hung Yen Province, the company not only serves the domestic market but also exports high-quality products internationally.
Certified early with ISO 9001:2015, NBT Plastic demonstrates a strong commitment to international quality standards. The company continually improves its technology—especially in molding and tooling—to meet stringent global partner requirements. Its creatively designed plastic bottles are increasingly popular in the cosmetics sector.
With the motto “Best Quality – Best Service“, NBT Plastic continues to affirm its position by partnering with major brands and helping elevate Vietnamese-made plastic products on the global stage.
